  • Product description: Mitsubishi Melsec Iq-F Series Flagship Model Equipped with Advanced Built-in Functions and Diverse Expandability
  • INQUIRY

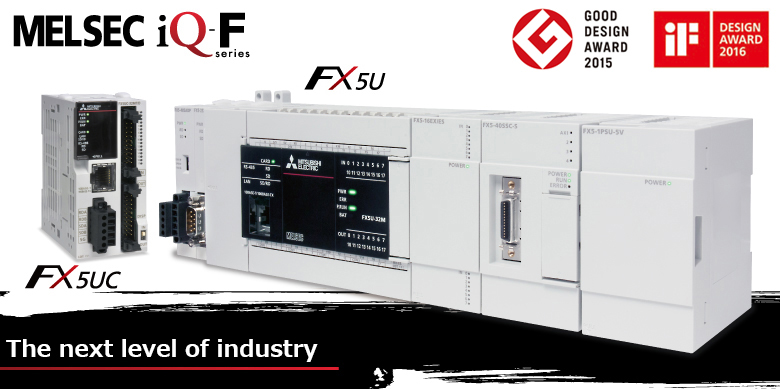

MELSEC iQ-F series

Awarded the iF Design Award in 2016!
The German design award iF Design Award has a tradition of over 60 years and recognized all over the world. Next generation PLC MELSEC iQ-F series, developed from the user perspective to provide improved visual verification and prevent operation mistakes, was awarded the iF Design Award in 2016!

MELSEC iQ-F Series Lineup
Flagship model equipped with advanced built-in functions and diverse expandability
Melsec Iq-F Series Flagship Model Equipped with Advanced Built-in Functions and Diverse Expandability




Simplifying use with renewed expansion modules!

FX5U is equipped with analog functions, communication and high-speed I/O, and can easily be expanded with expansion boards and adapters.
The high-speed system bus communication brings out the maximum performance of expansion devices equipped with intelligent functions.

Control scale 32 to 384 points (CPU module: 32/64/80 points)
Max. 512 pts including CC-Link, AnyWireASLINK, and Bitty series remote I/O
Program memory 128 k steps (Comment and statements in separate area)
Built-in analog input/output A/D 2 ch 12-bit
D/A 1 ch 12-bit
Built-in SD Memory Card Slot Max. 16 GB (SD/SDHC memory card)
[Application]
Stores device comment file and folders/files created by functions using SD memory card.
Built-in Ethernet Port 10BASE-T/100BASE-TX
[Application]
  • Socket communication (Direct connection to other PLCs)
  • Remote maintenance (Read/write program with GX Works3 connected via VPN)
  • SLMP Communication (Read/write PLC device data from PC)
Built-in RS-485 port Conforming to RS-485 and RS-422 standards
[Application]
  • Inverter Communication (Max. length 50 m, max. 16 units can be connected)
  • MODBUS® Communication (Up to 32 devices can be connected, including other PLCs, sensors, temperature controllers)
Built-in
input/output
function
Built-in positioning 4 axes 200 kHz pulse output
Built-in
high-speed counter
Max. 8 ch 200 kHz high speed pulse input
(FX5U-32M: 6 ch 200 kHz + 2 ch 10 kHz)
Compact body packed with diverse functions
Melsec Iq-F Series Flagship Model Equipped with Advanced Built-in Functions and Diverse Expandability




Simplifying use with renewed expansion modules!

The expansion module compatible with FX5UC is compact and easy-to-use, and helps to downsize your system.
Easily connect to the FX5 and FX3 expansion modules with the variety of conversion modules available.

Control scale 32 to 384 points (CPU module: 32/64/96 points)
Max. 512 pts including CC-Link, AnyWireASLINK, and Bitty series remote I/O
Program memory 128 k steps (Comment and statements in separate area)
Built-in SD Memory Card Slot Max. 16 GB (SD/SDHC memory card)
[Application]
Stores device comment file and folders/files created by functions using SD memory card.
Built-in Ethernet Port 10BASE-T/100BASE-TX
[Application]
  • Socket communication (Direct connection to other PLCs)
  • Remote maintenance (Read/write program with GX Works3 connected via VPN)
  • SLMP Communication (Read/write PLC device data from PC)
Built-in RS-485 port Conforming to RS-485 and RS-422 standards
[Application]
  • Inverter Communication (Max. length 50 m, max. 16 units can be connected)
  • MODBUS® Communication (Up to 32 devices can be connected, including other PLCs, sensors, temperature controllers)
Built-in
input/output
function
Built-in positioning 4 axes 200 kHz pulse output
Built-in
high-speed counter
Max. 8 ch 200 kHz high speed pulse input
(FX5UC-32M: 6 ch 200 kHz + 2 ch 10 kHz)

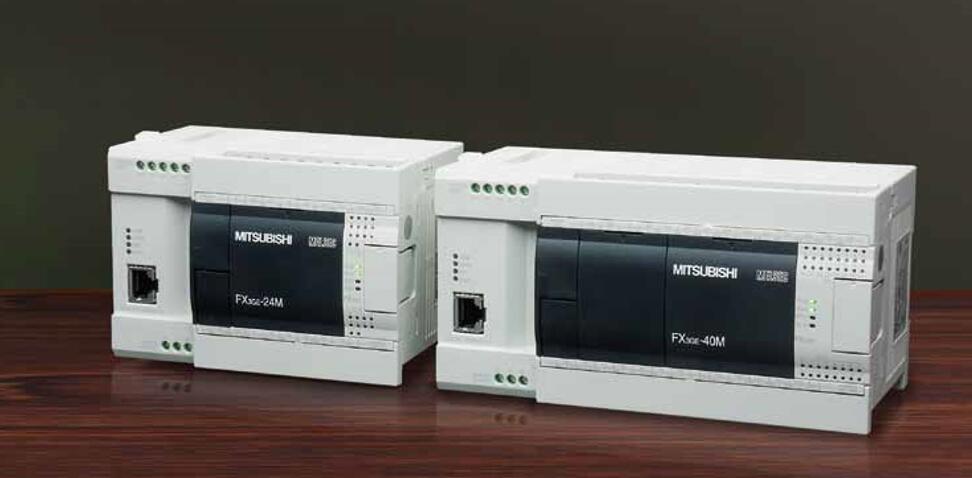

FX5UJ with excellent cost performance that can be used in any scene
Melsec Iq-F Series Flagship Model Equipped with Advanced Built-in Functions and Diverse Expandability




FX5UJ is equipped with various built-in functions to improve ease of use!

FX5UJ has an SD memory card slot, built-in USB (Mini-B) connector, and built-in Ethernet port as a standard.
In addition, built-in functions such as positioning and highspeed counters are included to condense various functions and ease of use.

Control scale 24 to 256 points (CPU module: 24/40/60 points)
Max. 256 pts including CC-Link, AnyWireASLINK, and Bitty series remote I/O
Program memory 48 k steps (Comment and statements in separate area)
Built-in SD Memory Card Slot Max. 16 GB (SD/SDHC memory card)
[Application]
Stores device comment file and folders/files created by functions using SD memory card.
Built-in Ethernet Port 10BASE-T/100BASE-TX
[Application]
  • Socket communication (Direct connection to other PLCs)
  • Remote maintenance (Read/write program with GX Works3 connected via VPN)
  • SLMP Communication (Read/write PLC device data from PC)
Built-in USB connector Mini-B (Data transfer speed: Max. 12 Mbps)
[Application]
Connections with GX Works3 can be established with just a single cable.
Built-in
input/output
function
Built-in positioning 3 axes 200 kHz pulse output
Built-in
high-speed counter
4 ch 200 kHz + 4 ch 10 kHz high speed pulse input

Powered I/O module

Model Total No.
of points
No. of input/output points
& Input/output type
Connection type Compatible CPU module
Input Output FX5U FX5UC FX5UJ
AC power supply type
FX5-32ER/ES 32 points 16 points 24 V DC
(sink/source)
16 points Relay Screw terminal block ×
FX5-32ET/ES Transistor (sink)
FX5-32ET/ESS Transistor (source)
DC power supply type
FX5-32ER/DS 32 points 16 points 24 V DC
(sink/source)
16 points Relay Screw terminal block *
×
FX5-32ET/DS Transistor (sink)
FX5-32ET/DSS Transistor (source)

*: When connecting to FX5UC, FX5-CNV-IFC or FX5-C1PS-5V is required.

page top

Input module

Model Total No.
of points
No. of input/output points
& Input/output type
Connection type Compatible CPU module
Input Output FX5U FX5UC FX5UJ
FX5-8EX/ES 8 points 8 points 24 V DC
(sink/source)
- - Screw terminal block *1
FX5-16EX/ES 16 points 16 points
FX5-C16EX/D 16 points 16 points 24 V DC
(sink)
- - Connector *2
*2
FX5-C16EX/DS 24 V DC
(sink/source)
FX5-C32EX/D 32 points 32 points 24 V DC
(sink)
FX5-C32EX/DS 24 V DC
(sink/source)
FX5-C32EX/DS-TS 32 points 32 points 24 V DC
(sink/source)
- - Spring clamp terminal block *2
*2

*1: When connecting to FX5UC, FX5-CNV-IFC or FX5-C1PS-5V is required.
*2: When connecting to FX5U or FX5UJ, FX5-CNV-IF is required.

page top

Output module

Model Total No.
of points
No. of input/output points
& Input/output type
Connection type Compatible CPU module
Input Output FX5U FX5UC FX5UJ
FX5-8EYR/ES 8 points - - 8 points Relay Screw terminal block *1
FX5-8EYT/ES Transistor (sink)
FX5-8EYT/ESS Transistor (source)
FX5-16EYR/ES 16 points 16 points Relay
FX5-16EYT/ES Transistor (sink)
FX5-16EYT/ESS Transistor (source)
FX5-C16EYR/D-TS 16 points - - 16 points Relay Spring clamp terminal block *2
*2
FX5-C16EYT/D 16 points - - 16 points Transistor (sink) Connector *2
*2
FX5-C16EYT/DSS Transistor (source)
FX5-C32EYT/D 32 points 32 points Transistor (sink)
FX5-C32EYT/DSS Transistor (source)
FX5-C32EYT/D-TS 32 points - - 32 points Transistor (sink) Spring clamp terminal block *2
*2
FX5-C32EYT/DSS-TS Transistor (source)

*1: When connecting to FX5UC, FX5-CNV-IFC or FX5-C1PS-5V is required.
*2: When connecting to FX5U or FX5UJ, FX5-CNV-IF is required.

page top

Input/output module

Model Total No.
of points
No. of input/output points
& Input/output type
Connection type Compatible CPU module
Input Output FX5U FX5UC FX5UJ
FX5-16ER/ES 16 points 8 points 24 V DC (sink/source) 8 points Relay Screw terminal block *1
FX5-16ET/ES Transistor (sink)
FX5-16ET/ESS Transistor (source)
FX5-C32ET/D 32 points 16 points 24 V DC (sink) 16 points Transistor (sink) Connector *2
*2
FX5-C32ET/DSS 24 V DC (sink/source) Transistor (source)
FX5-C32ET/DS-TS 32 points 16 points 24 V DC (sink/source) 16 points Transistor (sink) Spring clamp terminal block *2
*2
FX5-C32ET/DSS-TS Transistor (source)

*1: When connecting to FX5UC, FX5-CNV-IFC or FX5-C1PS-5V is required.
*2: When connecting to FX5U or FX5UJ, FX5-CNV-IF is required.

page top

High-speed pulse input/output module

Model Total No.
of points
No. of input/output points
& Input/output type
Connection type Compatible CPU module
Input Output FX5U FX5UC FX5UJ
FX5-16ET/ES-H 16 points 8 points 24 V DC (sink/source) 8 points Transistor (sink) Screw terminal block *1
*1 *2
×
FX5-16ET/ESS-H Transistor (source)

*1: Supported in version 1.030 or later.

Analog input devices (A/D conversion)

Model Input specifications Compatible CPU
module
Number of channels Item Input voltage Input current FX5U FX5UC FX5UJ
FX5U CPU module 2 ch Input
range
0 to 10 V DC
(input resistance 115.7 kΩ)
- - - -
Resolution 2.5mV -
FX5-4AD-ADP 4 ch Input
range
-10 to +10 V DC
(Input resistance 1 MΩ)
-20 to +20 mA DC
(Input resistance 250 Ω)

Max.
4 units

Max.
4 units

Max.
2 units
Input characteristics,
resolution
Analog
Input range
Resolution Analog
Input range
Resolution
10 to 10 V 625 μV 0 to 20 mA 1.25 μA
0 to 5 V 312.5 μV 4 to 20 mA 1.25 μA
1 to 5 V 312.5 μV -20 to 20 mA 2.5 μA
-10 to 10 V 1250 μV
FX5-4AD 4 ch Input
range
-10 to +10 V DC
(Input resistance 400 kΩ or more)
-20 to +20 mA DC
(Input resistance 250 Ω)
*1
Input characteristics,
resolution
Analog
Input range
Resolution Analog
Input range
Resolution
0 to 10 V 312.5 μV 0 to 20 mA 625 nA
0 to 5 V 156.25 μV 4 to 20 mA 500 nA
1 to 5 V 125 μV -20 to +20 mA 625 nA
-10 to +10 V 312.5 μV
User range
setting
125 μV User range
setting
500 nA
FX5-8AD 8 ch Input
range
-10 to 10 V DC
(Input resistance 1 MΩ)
-20 to +20 mA DC
(Input resistance 250 Ω)
*1
Input characteristics,
resolution
Analog
Input range
Resolution Analog
Input range
Resolution
0 to 10 V 312.5 μV 0 to 20 mA 625 nA
0 to 5 V 156.25 μV 4 to 20 mA 500 nA
1 to 5 V 125 μV -20 to +20 mA 625 nA
-10 to +10 V 312.5 μV
FX3U-4AD 4 ch Input
range
-10 to +10 V DC
(input resistance 200 kΩ)
-20 to +20 mA DC,
4 to 20 mA
(Input resistance 250 Ω)
*2

Max.
Max. 6 to 8 modules
*3
*2

Max.
6 units
