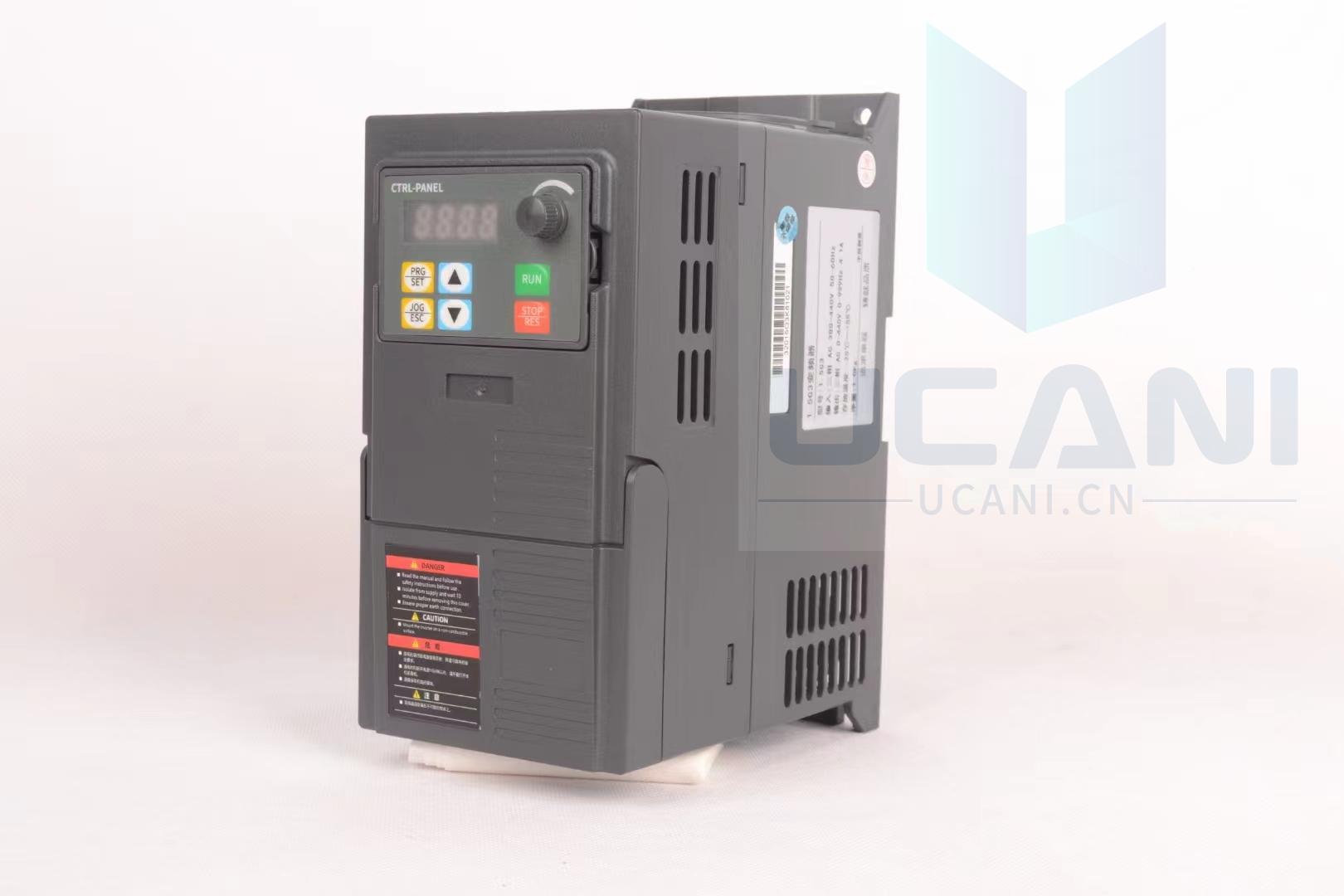

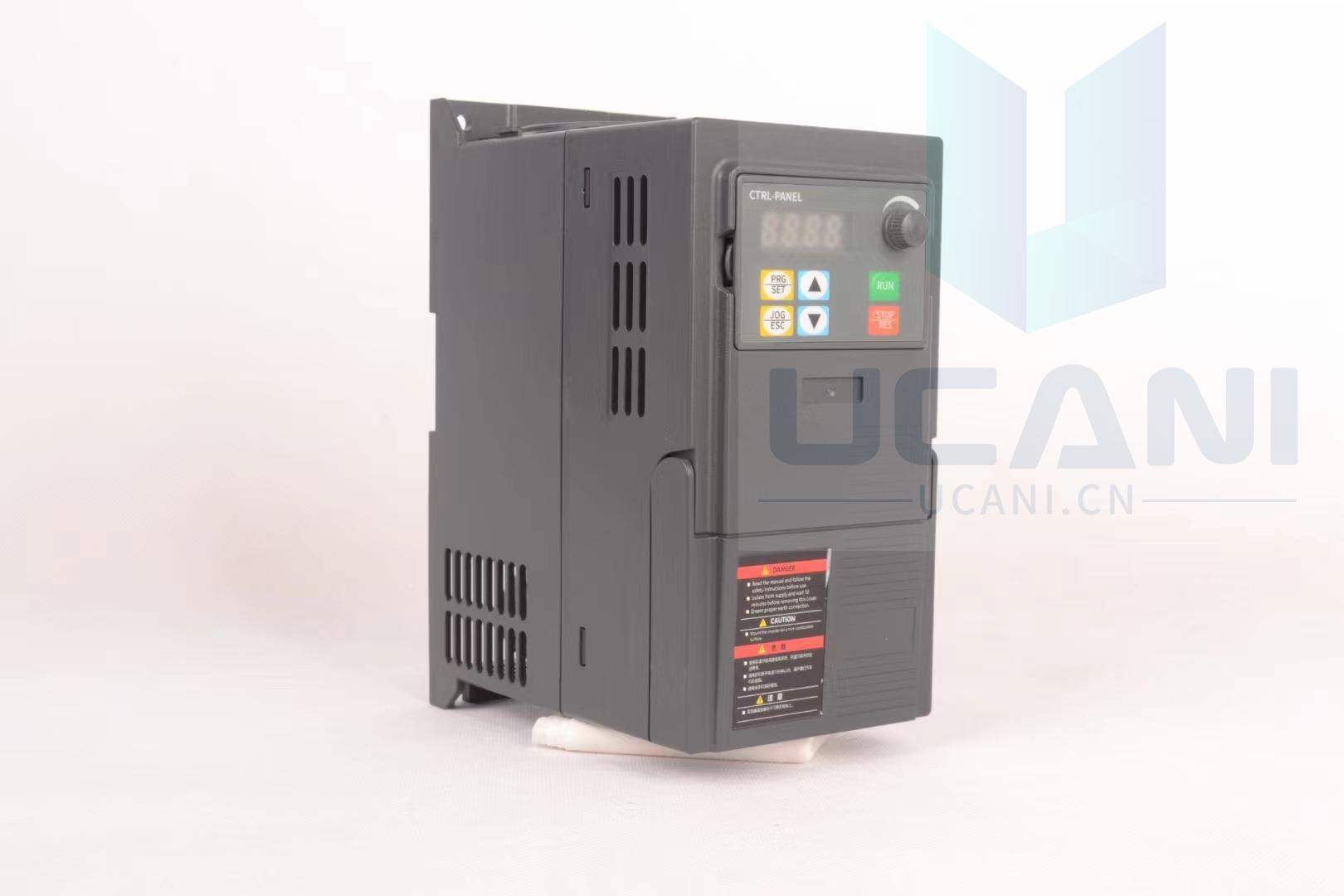

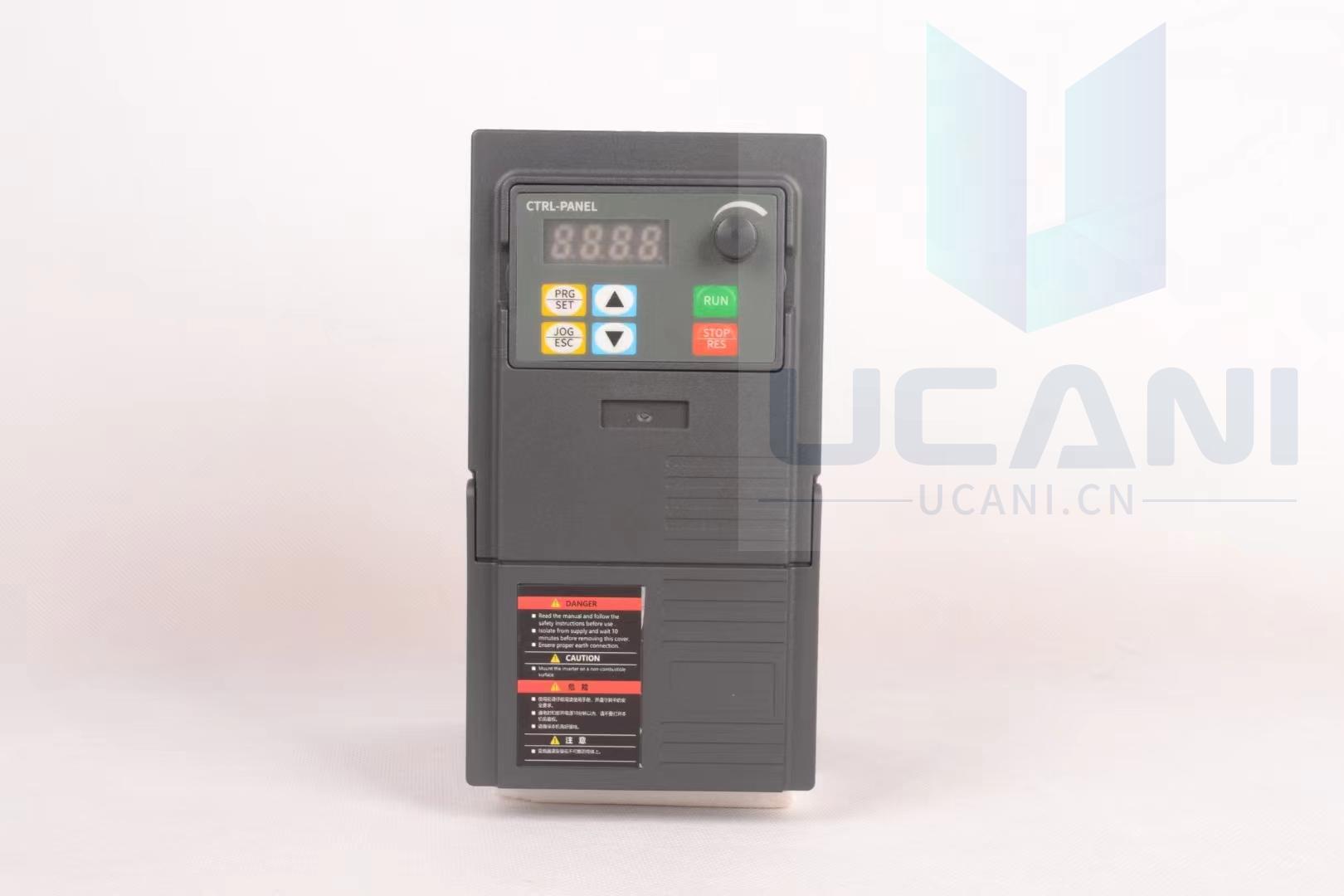

VFD320&VFD321 Series

Product description: VFD320S43A Series ■Low cost and compact structure ■Dual analog input ■Overcurrent, overvoltage, overload, phase loss, short circuit protection ■Simple PLC function ■Built-in PID softw
INQUIRY

■Low cost and compact structure

■Dual analog input

■Overcurrent, overvoltage, overload, phase loss, short circuit protection

■Simple PLC function

■Built-in PID software function

■Output voltage regulation AVR function

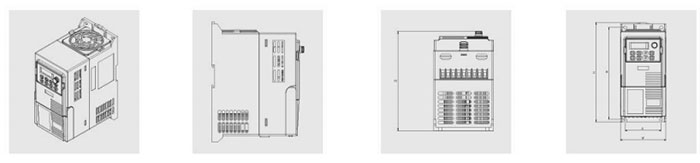

Model	Power	Power supply	Output current (A)	Overall dimension LWH (mm)	Installation dimension L * W -mounting screw
0.4S1-220V	0.4KW	Single-phase AC 200V-240V 50Hz/60Hz	2.1	17079127	160*60.5-M5
0.75S1-220V	0.75KW		3.8
1.5S1-220V	1.5KW		7
2.2S1-220V	2.2KW		9.0	18786144	173*68-M4
3.0S1-220V	3.0KW		13	216101151	204*83.5-M4
4.0S1-220V	4.0KW		15	237111168	216*88-M4
5.5S1-220V	5.5KW		20	237111168	216*88-M4
0.4S3-220V	0.4KW	Three-phase AC 200V-240V 50Hz/60Hz	2.1	17079127	160*60.5-M5
0.75S3-220V	0.75KW		3.8
1.5S3-220V	1.5KW		7
2.2S3-220V	2.2KW		9.0	18786144	173*68-M4
3.0S3-220V	3.0KW		13	216101151	204*83.5-M4
4.0S3-220V	4.0KW		15	237111168	216*88-M5
5.5S3-220V	5.5KW		20	237111168	216*88-M5
0.4G3-380V	0.4KW	Three-phase AC 340V-440V 50Hz/60Hz	1.5	17079127	160*60.5-M5
0.75G3-380V	0.75KW		2.1
1.5G3-380V	1.5KW		3.8
2.2G3-380V	2.2KW		5.1	18786144	173*68-M4
3.0G3-380V	3.0KW		7.1	18786144	173*68-M4
4.0G3-380V	4.0KW		9.0	216101151	204*83.5-M4
5.5G3-380V	5.5KW		12.6	216101151	204*83.5-M4
7.5G3-380V	7.5KW		16.1	237111168	216*88-M5
11G3-380V	11KW		25.0	249143172	237*130-M5
