FR-E800 Series

Product description: FR-E800 inverters have various functions to attract more customers by offering safe and reliable operation for a long time. This is the time to start innovation in the fields of manufacturing.
INQUIRY

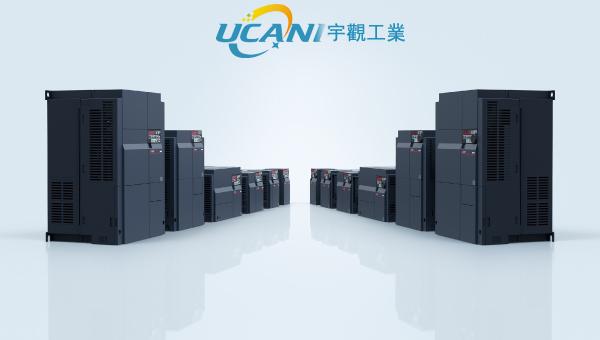

FREQROL-E800

Useful functions for each of the design, operation, and maintenance processes of systems

FR-E800 inverters have various functions to attract more customers by offering safe and reliable operation for a long time. This is the time to start innovation in the fields of manufacturing.

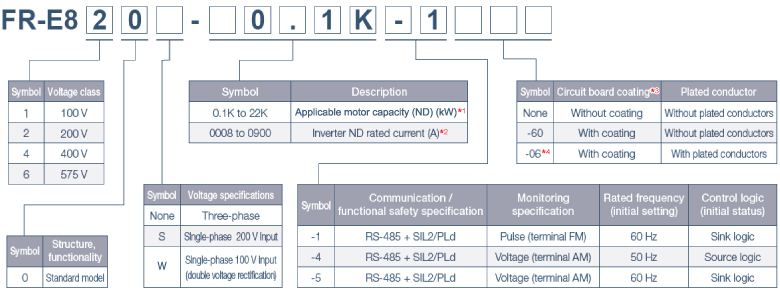

Standard model

＊1:Combination with the specification type -1(-60/-06) or -5 is available.
(When the kW indication is required for the product, purchase the model with a suffix "-5" and change the initial settings with reference to the Instruction Manual.
(Refer to the Instruction Manual (Connection) for the switching of the control logic of the inverter, and the Instruction Manual (Function) for the rated frequency.))

＊2:Combination with the specification type -4-60, -4-06, -5-60, or -5-06 is available.

＊3:Compatible with IEC 60721-3-3:1994 3C2.

＊4:Applicable for the FR-E820-0470(11K) or higher, and the FR-E840-0380(18.5K) or higher.

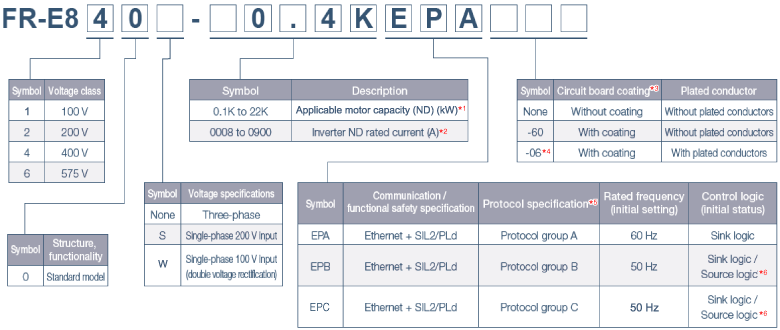

Ethernet model

＊1:Combination with the specification type EPA(-60/-06) or EPB(-60/-06) is available.

＊2:Combination with the specification type EPA-60, EPA-06, EPB-60, or EPB-06 is available.

＊3:Compatible with IEC 60721-3-3:1994 3C2.

＊4:Applicable for the FR-E820-0470(11K) or higher, and the FR-E840-0380(18.5K) or higher.

＊5:Selectable protocols differ depending on the group.
Protocol group A: CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, and BACnet/IP
Protocol group B: CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, and PROFINET
Protocol group C: EtherCAT

＊6:The initial status of the control logic differs depending on the inverter model.
Sink logic for the models indicated with the applicable motor capacity (kW)
Source logic for the models indicated with the rated current (A)

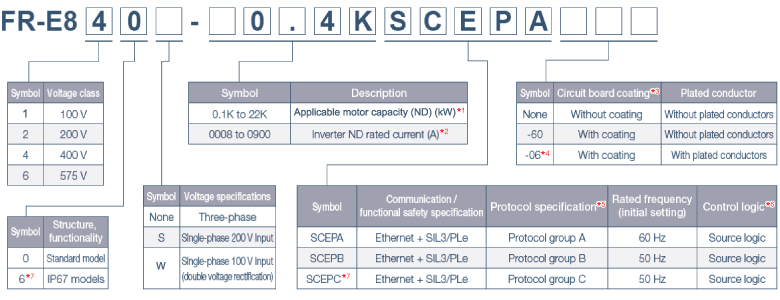

Safety communication model

＊1:Combination with the specification type SCEPA(-60/-06) or SCEPB(-60/-06) is available.

＊2:Combination with the specification type SCEPA-60, SCEPA-06, SCEPB-60, or SCEPB-06 is available.

＊3:Compatible with IEC 60721-3-3:1994 3C2

＊4:Applicable for the FR-E820-0470(11K) or higher, and the FR-E840-0380(18.5K) or higher.

＊6:The control logic is fixed to the source logic.

＊7:To be released

Capacity table

Three-phase 200 V	0.1K	0.2K	0.4K	0.75K	1.5K	2.2K	3.7K	5.5K	7.5K	11K	15K	18.5K	22K
Three-phase 200 V	0008	0015	0030	0050	0080	0110	0175	0240	0330	0470	0600	0760	0900
FR-E820-[]K（E/SCE）	●	●	●	●	●	●	●	●	●	●	●	●	●
Three-phase 400 V	―	―	0.4K	0.75K	1.5K	2.2K	3.7K	5.5K	7.5K	11K	15K	18.5K	22K
Three-phase 400 V	―	―	0016	0026	0040	0060	0095	0120	0170	0230	0300	0380	0440
FR-E840-[]K（E/SCE）	―	―	●	●	●	●	●	●	●	●	●	●	●
Three-phase 575 V	―	―	―	0.75K	1.5K	2.2K	3.7K	5.5K	7.5K	―	―	―	―
Three-phase 575 V	―	―	―	0017	0027	0040	0061	0090	0120	―	―	―	―
FR-E860-[]K（E/SCE）	―	―	―	●	●	●	●	●	●	―	―	―	―
Single-phase 200 V	0.1K	0.2K	0.4K	0.75K	1.5K	2.2K	―	―	―	―	―	―	―
Single-phase 200 V	0008	0015	0030	0050	0080	0110	―	―	―	―	―	―	―
FR-E820S-[]K(E/SCE)	●	●	●	●	●	●	―	―	―	―	―	―	―
Single-phase 100 V	0.1K	0.2K	0.4K	0.75K	―	―	―	―	―	―	―	―	―
Single-phase 100 V	0008	0015	0030	0050	―	―	―	―	―	―	―	―	―
FR-E810W-[]K(E/SCE)	●	●	●	●	―	―	―	―	―	―	―	―	―

When a fault occurs, AI analysis and other diagnosis functions solve the problem quickly.

Streamlining the installation process

Compatible installation size

The installation size was determined to assure exchangeability with the FR-E700 series. Installation interchange attachment options are available for facilitating replacement with the models of different size.
(The depth required for installation increases by 12 mm.)

Easy and fast wiring

Control circuit terminal

Spring clamp terminals have been adopted for control circuit terminals for easy wiring.
Furthermore, wires can be protected against loosening or contact faults due to vibrations during operation on a bogie or during transport. No additional screw tightening is required.
The removable control circuit terminal block facilitates replacement with a new one.

		FR-E800	FR-E800-E	FR-E800-SCE
Input terminal		7	2	0
Output terminal	Open collector	2	0	0
Output terminal	Relay	1	1	1

Troubleshooting supported by AI technology

AI fault diagnosis

The inverter is connected to the engineering software FR Configurator2 (USB/Ethernet connection).
Maisart^＊1 (Mitsubishi Electric's AI technology) is integrated in the software to analyze data and help identify the cause of a fault^＊2 (this function is enabled during speed control).
This function enables the fastest troubleshooting procedure without requiring any special skills, which contributes to downtime reduction.

＊1: Maisart is Mitsubishi Electric's brand of AI technology. The name stands for "Mitsubishi Electric's AI creates the State-of-the-ART in technology". This means that it is using our proprietary AI technology to make everything smarter.
＊2: Diagnosable faults: Overcurrent trip, Overvoltage trip, Inverter overload trip (electronic thermal relay function), Motor overload trip (electronic thermal relay function). (other faults will be supported in the future.)

Continuing the operation during a trouble

Emergency drive (Fire mode)

The inverter can continue driving the motor in case of emergency such as a fire, since protective functions are not activated even if the inverter detects a fault.

Using this function may damage the motor or inverter because driving the motor is given the highest priority. Use this function for emergency operation only.
The operation can be switched to the commercial power supply operation at the occurrence of a fault which may cause damage of the inverter.

Quick reaction to troubles

Power supply from USB port

With the power supplied from the computer (USB bus power connection)^＊3, parameters can be set using FR Configurator2 while the main circuit power supply is OFF.
Maintenance can be performed quickly and safely.

＊3: The maximum SCCR should be 500 mA. A PU connector cannot be used during USB bus power connection.

24 VDC input (FR-E8DS E kit)

Maintenance can be performed safely as the parameter setting and communication operation can be done while the main circuit power is OFF. (24 V external power supply operation)
When a fault occurs, troubleshooting is facilitated as the fault indication remains after turning OFF the main circuit power supply.

Turning ON the main circuit power during the 24 V external power supply operation switches the operation to the normal operation. Before the operation is switched, a reset is performed in the inverter.

Trouble analysis from a remote location

Trace function

The operating status (output frequency or other data) immediately before the protective function is activated can be stored in a data file.
Users can read the data file in FR Configurator2 for graph display or send it by e-mail to someone away from the worksite, which facilitates the trouble analysis.

Clock function

Setting the time^＊4 enables the user to specify the protective function activation time. The date and time are also saved with the trace data, making the fault analysis easier. Time synchronization via CC-Link IE TSN communication is available for the Ethernet model.
It is possible to synchronize the internal clocks of the devices that comprise the CC-Link IE TSN communication.

*4: The clock does not run while the control circuit power is OFF. The clock needs to be set every time after turning ON the inverter power.
By using the real-time clock function with the optional LCD operation panel (FR-LU08) (when using battery), the clock keeps running even when the control power supply is turned OFF.
