  • Product description: To meet the requirements of general-purpose machine tools and enhance the competitive advantage in the industrial automation market, Delta Electronics, Inc. is pleased to announce that the new high-pe
  • INQUIRY

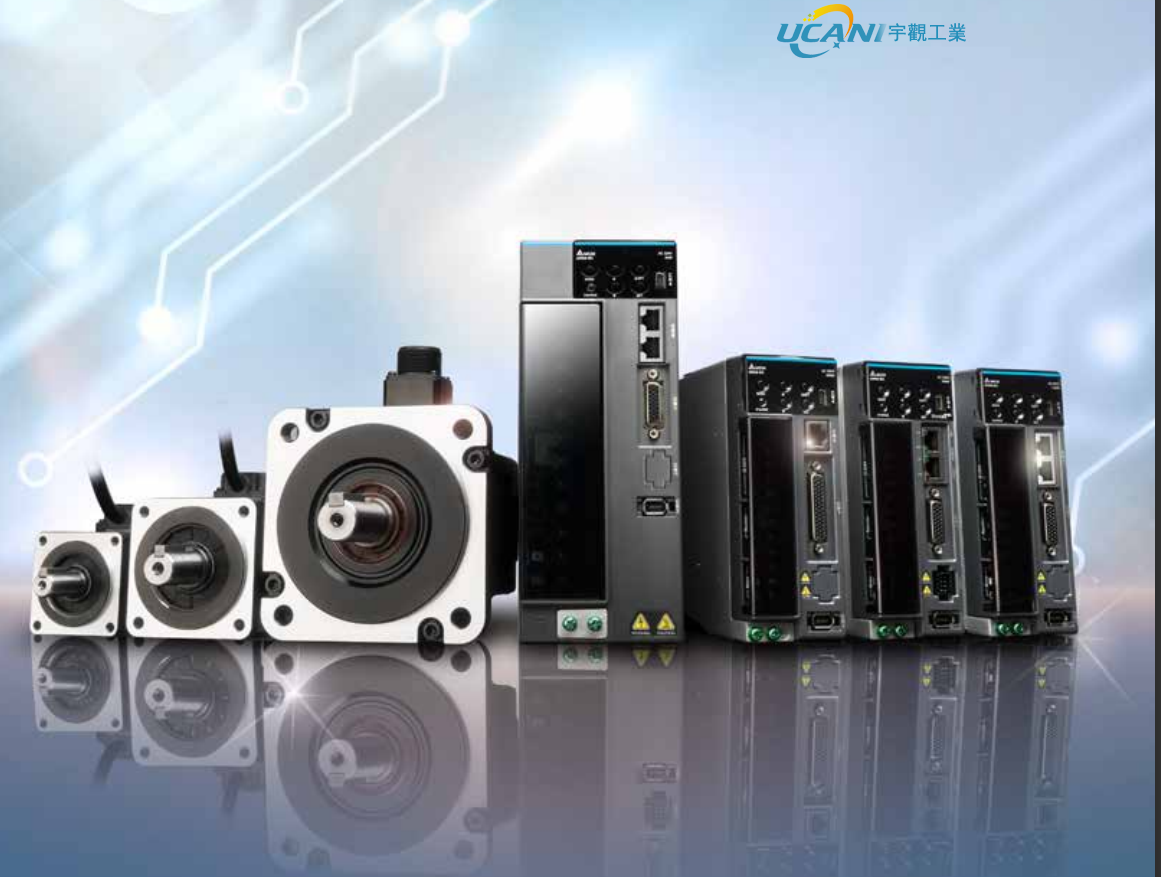

To meet the requirements of general-purpose machine tools and enhance the competitive advantage in the industrial automation market, Delta Electronics, Inc. is pleased to announce that the new high-performance and cost-effective ASDA-B2 series servo motors and drives has launched into the market.

Product Introduction

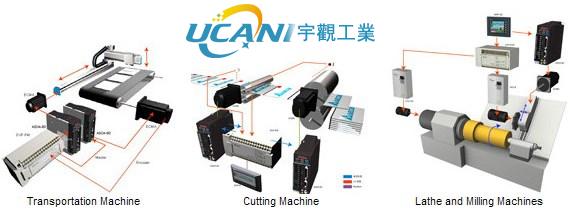

Applications


Specifications

High-resolution encoder with 17-bit (160,000 p/rev) is equipped as a standard feature which satisfies the application needs of high precision positioning control and stable rotation at low speed.

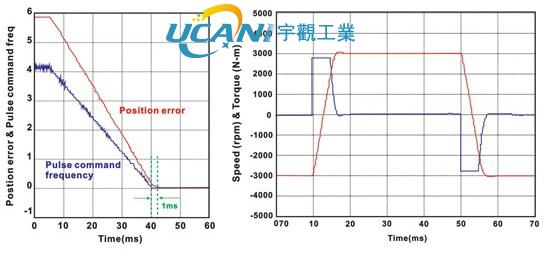

Satisfy High Precision Positioning Requirements

  1. Support pulse input (up to 4Mbps) and analog voltage two kinds of command.
  2. Built-in position, speed and torque three control modes (speed and torque mode could be controlled via internal parameters or analog voltage command).

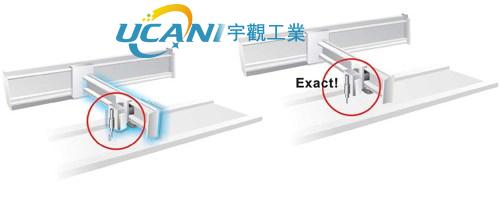

  3. There auto notch filters are provided to suppress the mechanical resonance automatically and make the system operate more smoothly.
Offer Easy-To-Install Solution for Simple Start-Up
  1. Motor sizing software is offered for the customers to conduct the estimation of the equipment conveniently.
  2. ASDA-Soft configuration software (tuning software) is provided for the customers to meet the performance requirements quickly.

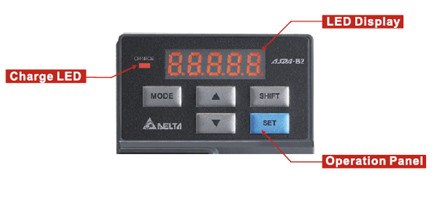

  3. Easy-to-use digital keypad is ideal for setting parameters and monitoring the servo drive and motor directly.
  4. Servo motor provides brake, oil seal etc. optional configurations for the requirements of different applications.
Reduce Maintenance and Wiring Cost for Versatile Operation
  1. Existing power cables and encoder cables for ASDA series could be used still. When upgrading, there is no need to purchase new accessories.

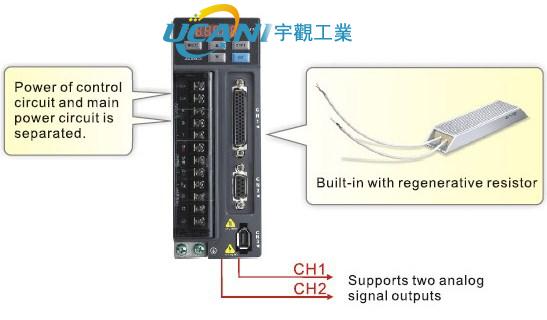

  2. The control circuit and main power circuit is separated, safety is increased and maintenance is much easier.
  3. 400W and above servo drive is built-in with regenerative resistor, significantly save the wiring and cost.
  4. Two analog input terminals (CN5) are provided, easily monitor and the status of the servo motor.
