Linear Guideway

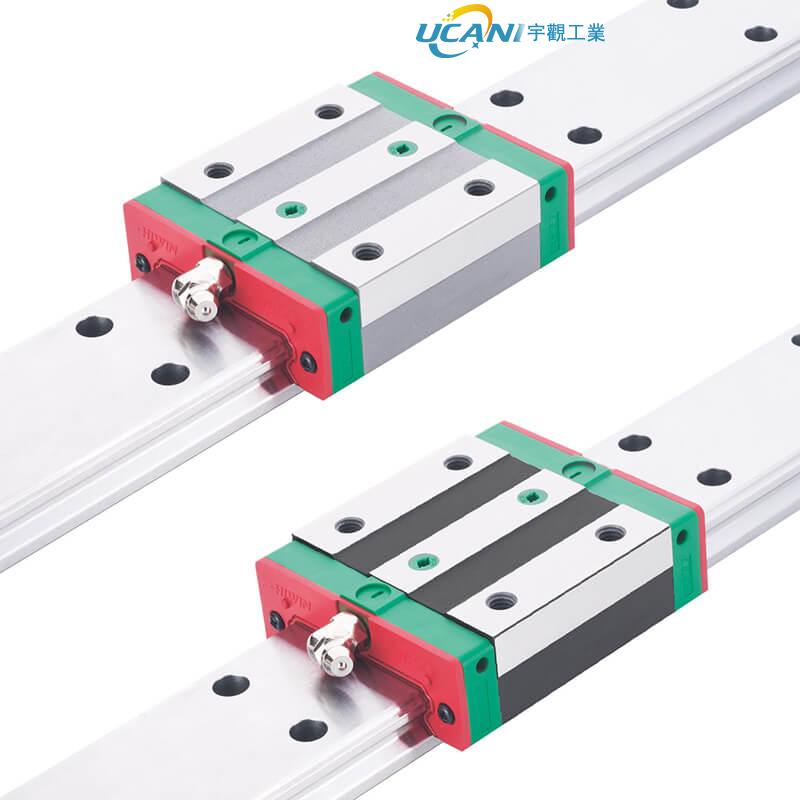

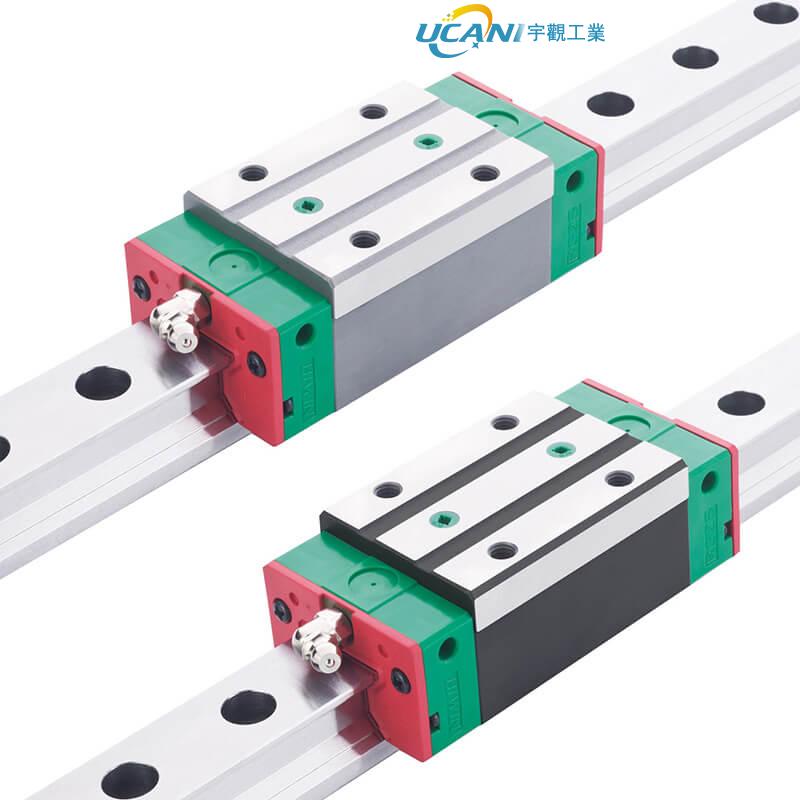

HIWIN QE Series Quiet Linear Guideway

HIWIN QE Series Quiet Linear Guideway

HIWIN QE Series Quiet Linear Guideway

HIWIN QE Series Quiet Linear Guideway

Product description: HIWIN QE Series Quiet Linear Guideway
INQUIRY

QEH-CA / QEH-SA

HIWIN Linear Guideway QEH-CA / QEH-SA Dimensions

Model	Dimensions of Assembly(mm)			Dimensions of Block(mm)													Dimensions of Rail(mm)							Mounting Bolt for Rail	Basic Dynamic Load Rating	Basic Static Load Rating	Static Rated Moment			Weight
Model	H	H₁	N	W	B	B₁	C	L₁	L	K₁	K₂	G	Mxl	T	H₂	H₃	W_R	H_R	D	h	d	P	E	(mm)	C(kN)	C₀(kN)	M_R(kN-m)	M_P(kN-m)	M_Y(kN-m)	Block(kg)	Rail(kg/m)
QEH15SA	24	4	9.5	34	26	4	-	23.1	40.1	14.8	3.5	5.7	M4x6	6	5.5	6	15	12.5	6	4.5	3.5	60	20	M3x16	8.56	8.79	0.07	0.03	0.03	0.09	1.25
QEH15CA	24	4	9.5	34	26	4	26	39.8	56.8	10.15	3.5	5.7	M4x6	6	5.5	6	15	12.5	6	4.5	3.5	60	20	M3x16	12.53	15.28	0.12	0.09	0.09	0.15	1.25
QEH20SA	28	6	11	42	32	5	-	29	50	18.75	4.15	12	M5x7	7.5	6	6.5	20	15.5	9.5	8.5	6	60	20	M5x16	11.57	12.18	0.13	0.05	0.05	0.15	2.08
QEH20CA	28	6	11	42	32	5	32	48.1	69.1	12.3	4.15	12	M5x7	7.5	6	6.5	20	15.5	9.5	8.5	6	60	20	M5x16	16.5	20.21	0.21	0.15	0.15	0.23	2.08
QEH25SA	33	6.2	12.5	48	35	6.5	-	35.5	60.1	21.9	5	12	M6x9	8	8	8	23	18	11	9	7	60	20	M6x20	18.24	18.9	0.22	0.1	0.1	0.24	2.67
QEH25CA	33	6.2	12.5	48	35	6.5	35	59	83.6	16.15	5	12	M6x9	8	8	8	23	18	11	9	7	60	20	M6x20	26.03	31.49	0.37	0.29	0.29	0.4	2.67
QEH30SA	42	10	16	60	40	10	-	41.5	67.5	25.75	6	12	M8x12	9	8	9	28	23	11	9	7	80	20	M6x25	26.27	27.82	0.4	0.18	0.18	0.44	4.35
QEH30CA	42	10	16	60	40	10	40	70.1	96.1	20.05	6	12	M8x12	9	8	9	28	23	11	9	7	80	20	M6x25	37.92	46.63	0.67	0.51	0.51	0.75	4.35
QEH35SA	48	11	18	70	50	10	-	51	76	30.3	6.25	12	M8x12	10	8.5	8.5	34	27.5	14	12	9	80	20	M8x25	36.39	36.43	0.61	0.33	0.33	0.77	6.14
QEH35CA	48	11	18	70	50	10	50	83	108	21.3	6.25	12	M8x12	10	8.5	8.5	34	27.5	14	12	9	80	20	M8x25	51.18	59.28	1	0.75	0.75	1.19	6.14

QEW-CA / QEW-SA

HIWIN Linear Guideway QEW-CA / QEW-SA Dimensions

Model	Dimensions of Assembly(mm)			Dimensions of Block(mm)														Dimensions of Rail(mm)							Mounting Bolt for Rail	Basic Dynamic Load Rating	Basic Static Load Rating	Static Rated Moment			Weight
Model	H	H₁	N	W	B	B₁	C	L₁	L	K₁	K₂	G	M	T	T₁	H₂	H₃	W_R	H_R	D	h	d	P	E	(mm)	C(kN)	C₀(kN)	M_R(kN-m)	M_P(kN-m)	M_Y(kN-m)	Block(kg)	Rail(kg/m)
QEW15SA	24	4	18.5	52	41	5.5	-	23.1	40.1	14.8	3.5	5.7	M5	5	7	5.5	6	15	12.5	6	4.5	3.5	60	20	M3x16	8.56	8.79	0.07	0.03	0.03	0.12	1.25
QEW15CA	24	4	18.5	52	41	5.5	26	39.8	56.8	10.15	3.5	5.7	M5	5	7	5.5	6	15	12.5	6	4.5	3.5	60	20	M3x16	12.53	15.28	0.12	0.09	0.09	0.21	1.25
QEW20SA	28	6	19.5	59	49	5	-	29	50	18.75	4.15	12	M6	7	9	6	6.5	20	15.5	9.5	8.5	6	60	20	M5x16	11.57	12.18	0.13	0.05	0.05	0.19	2.08
QEW20CA	28	6	19.5	59	49	5	32	48.1	69.1	12.3	4.15	12	M6	7	9	6	6.5	20	15.5	9.5	8.5	6	60	20	M5x16	16.5	20.21	0.21	0.15	0.15	0.31	2.08
QEW25SA	33	6.2	25	73	60	6.5	-	35.5	60.1	21.9	5	12	M8	7.5	10	8	8	23	18	11	9	7	60	20	M6x20	18.24	18.9	0.22	0.1	0.1	0.34	2.67
QEW25CA	33	6.2	25	73	60	6.5	35	59	83.6	16.15	5	12	M8	7.5	10	8	8	23	18	11	9	7	60	20	M6x20	26.03	31.49	0.37	0.29	0.29	0.58	2.67
QEW30SA	42	10	31	90	72	9	-	41.5	67.5	25.75	6	12	M10	7	10	8	9	28	23	11	9	7	80	20	M6x25	26.27	27.82	0.4	0.18	0.18	0.61	4.35
QEW30CA	42	10	31	90	72	9	40	70.1	96.1	20.05	6	12	M10	7	10	8	9	28	23	11	9	7	80	20	M6x25	37.92	46.63	0.67	0.51	0.51	1.03	4.35
QEW35SA	48	11	33	100	82	9	-	51	PREVIOUS：HIWIN WE Series Four Row Wide Rail Type Linear Guideway NEXT：HIWIN Endcap Recirculation Type Ballscrew Related Products RG Series High rigidity Roller HIWIN HG Series Heavy Load Bal HIWIN EG Series Low Profile Ba Categories Inverters-AC Motor Drives+ Delta UCANI MITSUBISHI AB Allen-Bradly Programmable logic controller+ Delta mitsubishi HMI touch screen+ DELTA UCNAI AC Servo Drives and Motor+ Delta Planetary Gearbox/Gear motor+ Mechanical robot+ Soft start drive+ Linear Guideway+ Ball screw+ Machinery and equipment+ Latest News Delta’s AC Servo Drive & Motor A What is an AC drive Delta will cooperate with Genera Delta Automates Tire Cord Proces Digitized Manufacturing for an I Contact Us Contact: Gloria Phone: +8613681981380 Tel: +86 021-64556477 Add: Room 312, Factory Building, No. 338 Shuangbai Road, Minhang District, Shanghai Share https://www.addtoany.com/add_to/wechat?linkurl=https%3A%2F%2Fwww.example.com%2Fpage.html&linkname=Example%20Page Call Top CopyRight 2013 All Right Reserved Shanghai UCANI Industrial Development Co.,Ltd ICP:08118188899 Sitemap Add: Room 312, Factory Building, No. 338 Shuangbai Road, Minhang District, Shanghai Tel: +86 021-64556477 Fax: +86 21-021-62217157 关闭 ucani https://www.addtoany.com/add_to/wechat?linkurl=https%3A%2F%2Fwww.example.com%2Fpage.html&linkname=Example%20Page close
