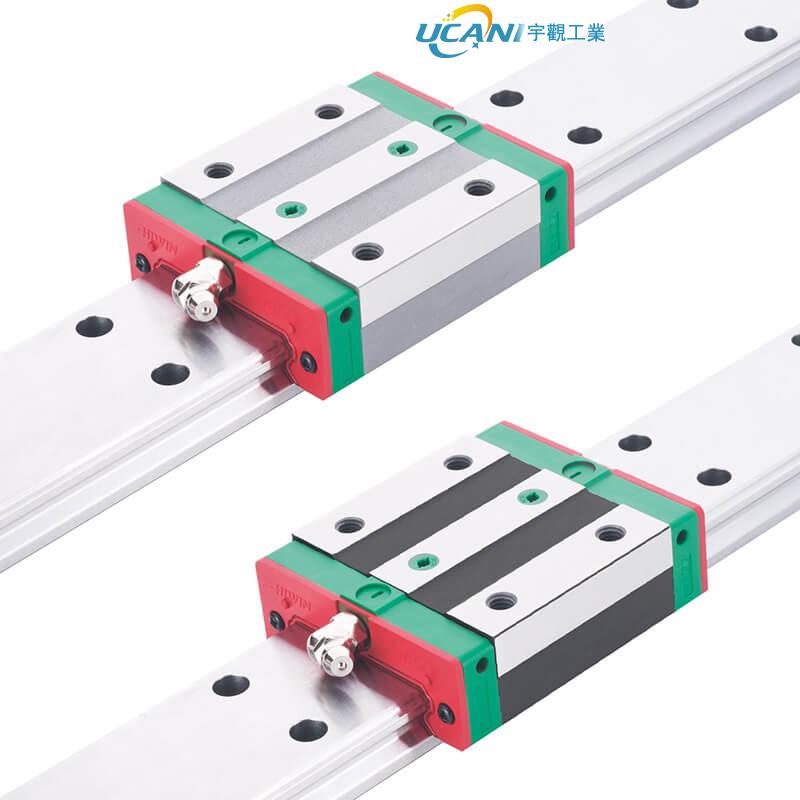

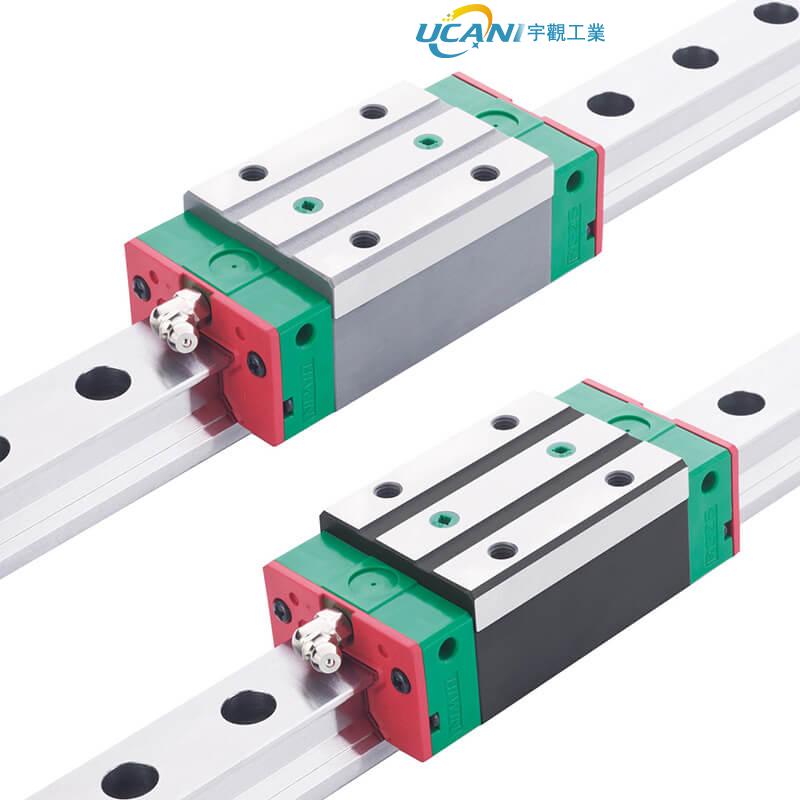

HIWIN WE Series Four Row Wide Rail Type Linear Guideway

  • Product description: HIWIN WE Series Four Row Wide Rail Type Linear Guideway
  • INQUIRY

WEH-CA

HIWIN Linear Guideway WEH-CA Dimensions

Model Dimensions of Assembly(mm) Dimensions of Block(mm) Dimensions of Rail(mm) Mounting Bolt for Rail Basic Dynamic Load Rating Basic Static Load Rating Static Rated Moment Weight
H H1 N W B B1 C L1 L K1 K2 G Mxl T H2 H3 WR WB HR D h d P E (mm) C(kN) C0(kN) MR(kN-m) MP(kN-m) MY(kN-m) Block(kg) Rail(kg/m)
WEH17CA 17 2.5 8.5 50 29 10.5 15 35 50.6 - 3.1 4.9 M4x5 6 4 3 33 18 9.3 7.5 5.3 4.5 40 15 M4x12 5.23 9.64 0.15 0.062 0.062 0.12 2.2
WEH21CA 21 3 8.5 54 31 11.5 19 41.7 59 14.68 3.65 12 M5x6 8 4.5 4.2 37 22 11 7.5 5.3 4.5 50 15 M4x12 7.21 13.7 0.23 0.1 0.1 0.2 3
WEH27CA 27 4 10 62 46 8 32 51.8 72.8 14.15 3.5 12 M6x6 10 6 5 42 24 15 7.5 5.3 4.5 60 20 M4x16 12.4 21.6 0.42 0.17 0.17 0.35 4.7
WEH35CA 35 4 15.5 100 76 12 50 77.6 102.6 18.35 5.25 12 M8x8 13 8 6.5 69 40 19 11 9 7 80 20 M6x20 29.8 49.4 1.48 0.67 0.67 1.1 9.7
WEH50CA 50 7.5 20 130 100 15 65 112 140 28.05 6 12.9 M10x15 19.5 12 10.5 90 60 24 14 12 9 80 20 M8x25 61.52 97.1 4.03 1.96 1.96 3.16 14.6

WEW-CC

HIWIN Linear Guideway WEW-CC Dimensions
Model Dimensions of Assembly(mm) Dimensions of Block(mm) Dimensions of Rail(mm) Mounting Bolt for Rail Basic Dynamic Load Rating Basic Static Load Rating Static Rated Moment Weight
H H1 N W B B1 C L1 L K1 K2 G M T T1 H2 H3 WR WB HR D h d P E (mm) C(kN) C0(kN) MR(kN-m) MP(kN-m) MY(kN-m) Block(kg) Rail(kg/m)
WEW17CC 17 2.5 13.5 60 53 3.5 26 35 50.6 - 3.1 4.9 M4 5.3 6 4 3 33 18 9.3 7.5 5.3 4.5 40 15 M4x12 5.23 9.64 0.15 0.062 0.062 0.13 2.2
WEW21CC 21 3 15.5 68 60 4 29 41.7 59 9.68 3.65 12 M5 7.3 8 4.5 4.2 37 22 11 7.5 5.3 4.5 50 15 M4x12 7.21 13.7 0.23 0.1 0.1 0.23 3
WEW27CC 27 4 19 80 70 5 40 51.8 72.8 10.15 3.5 12 M6 8 10 6 5 42 24 15 7.5 5.3 4.5 60 20 M4x16 12.4 21.6 0.42 0.17 0.17 0.43 4.7
WEW35CC 35 4 25.5 120 107 6.5 60 77.6 102.6 13.35 5.25 12 M8 11.2 14 8 6.5 69 40 19 11 9 7 80 20 M6x20 29.8 49.4 1.48 0.67 0.67 1.26 9.7
WEW50CC 50 7.5 36 162 144 9 80 112 140 20.55 6 12.9 M10 14 18 12 10.5 90 60 24 14 12 9 80 20 M8x25 61.52 97.1 4.03 1.96 1.96 3.71 14.6
